Activated carbon filter

We use activated carbon filters to remove odours from exhaust air and to purify biogas. There they remove pollutants such as volatile organic compounds (VOCs), hydrogen sulphide (H₂S), siloxanes and mercaptans. In biogas purification, the activated carbon filter can be installed downstream of a biological desulphurization stage as fine purification.

Pollutants are eliminated from product and exhaust air streams by adsorption onto suitable carrier materials (activated carbon). Specific activated carbon types are selected to match particular pollutants.

Building designs

Single-stage
Parallel operation
Round design
Biogas purification with activated carbon
Integrated in the biofilter container module

Material

Polypropylene (PP)
Polyethylene (PE)
Glass fibre-reinforced plastic (FRP)

Applications

Applications include:

Municipal and/or industrial sewage treatment plants
Chemical industry
Paper industry
Landfills

Photo gallery

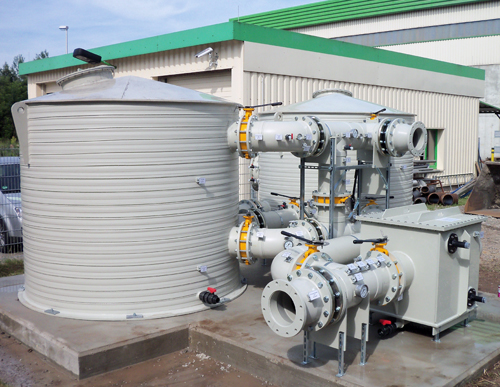

Activated carbon filter for 1800 Nm³/h in parallel and series circuit. — Activated carbon filter for 1800 Nm³/h in parallel and series circuit

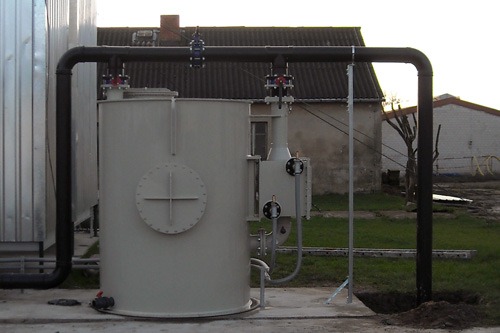

Retrofit activated carbon filter on a biogas plant for obtaining the formaldehyde bonus

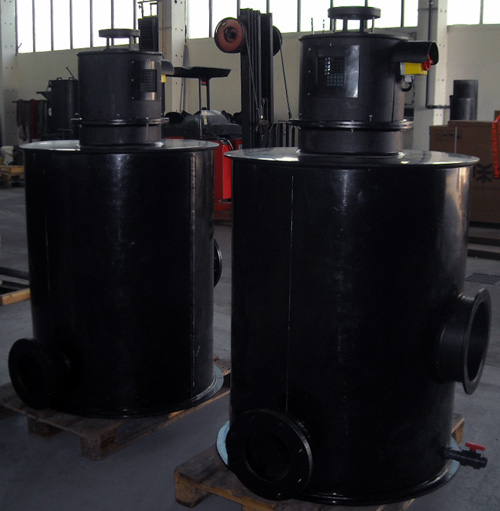

Activated carbon filter for elimination of hydrogen sulphide for small exhaust air volumes

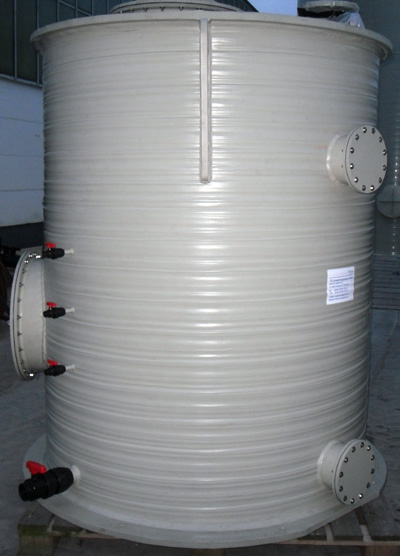

Activated carbon filter for biogas cleaning for a nominal pressure of 220 mbar

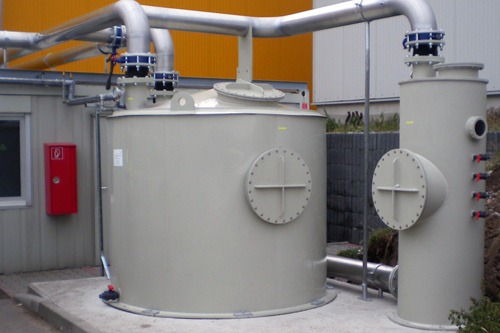

Combined biological desulphurization with cooling and reheating of the biological pre-cleaned gas and a downstream fine purification with an isolated activated carbon filter to achieve purified gas concentrations below 5 ppm
